Various rubber profiles and strips used in door seals, window frames, and vibration dampening materials are produced using the 150mm 16D/20D extruder. The machine's capability to maintain uniform cross-sections helps meet quality requirements across batches.

Many custom rubber parts used in industrial machinery, such as rollers, pads, and protective covers, are also manufactured through extrusion. The 150mm extruder's efficient mixing and extrusion process supports the production of complex and high-performance rubber products.

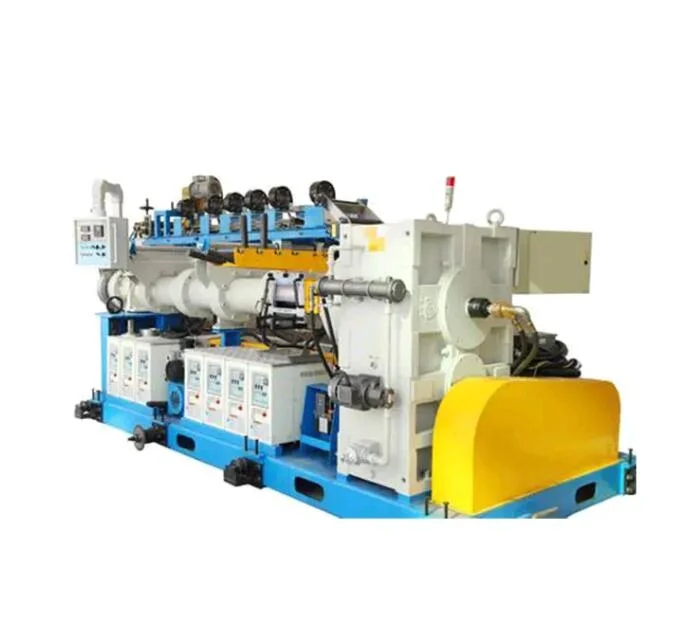

Choosing the right extruder is crucial for ensuring production efficiency and product quality. The 150mm 16D/20D rubber extruder offers several benefits:

High Throughput Capacity

With a 150mm screw diameter, this extruder can process large volumes of rubber material efficiently, making it suitable for medium to large production runs without compromising on speed or quality.

Improved Mixing and Homogeneity

The 16D or 20D screw length-to-diameter ratio allows for thorough mixing and consistent heating of the rubber compound inside the barrel. This uniformity is essential for achieving the desired mechanical properties in the final product.

Versatile Processing Capabilities

The extruder can handle a wide range of rubber types, including natural rubber, synthetic rubber, and specialized compounds. This flexibility enables manufacturers to switch between products or customize formulations as needed.

Precise Temperature Control

Temperature control is vital in rubber extrusion to prevent degradation or incomplete curing. The 150mm extruder is equipped with advanced heating and cooling systems that maintain optimal processing temperatures, leading to improved product stability and performance.

Energy Efficiency and Cost-Effectiveness

Modern designs of the 150mm 16D/20D extruder focus on energy-efficient motors and optimized screw designs to reduce power consumption. This not only lowers operational costs but also supports sustainable manufacturing practices.

https://www.zjbaina.com/product/rubber-extruders-series/150mm16d-20d-extrude-machine.html

The system adopts forced circulation of media, and controls the temperature of each section independently in six units. Each unit is composed of a water pump, an electric heater, a temperature control instrument, a cooling water on-off solenoid valve, an automatic exhaust valve, a platinum thermal resistance, and an electrical contact pressure. Table (shockproof) and other components, the circulating water pump injects the medium (softened water) into the electric heater (the automatic exhaust valve discharges the gas in the system), flowsthrough the barrel, pipeline, the machine head, and the screw return to the suction port of the pump.
