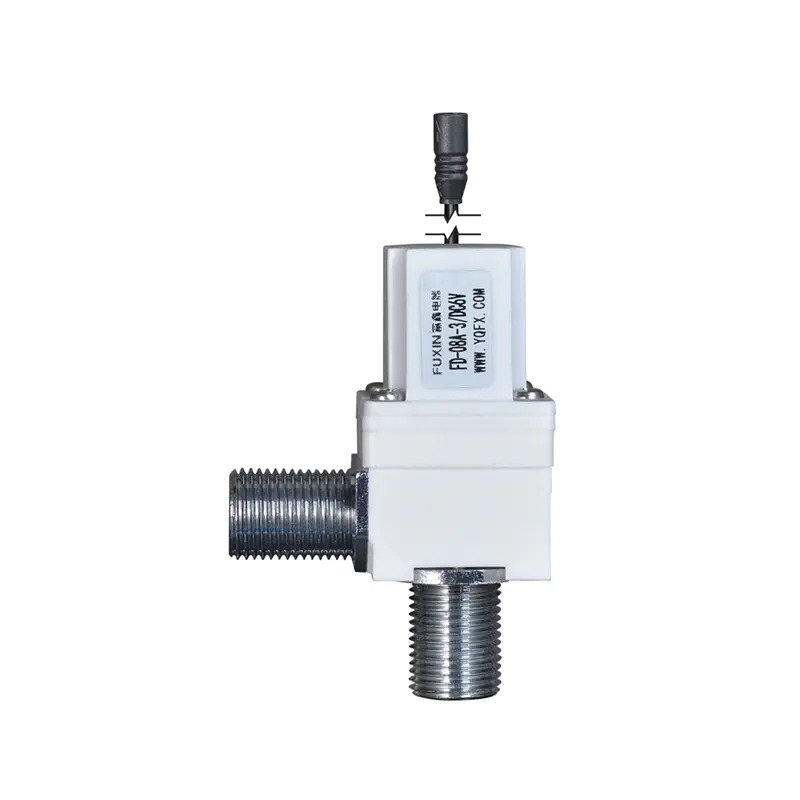

The Infrared Sensor Faucet Solenoid Valve is designed for use in sensor-controlled systems for sanitary ware such as hand washers. The solenoid valve can operate in both pulse signal and continuous modes. The pulse valve boasts an ly long lifespan of up to 1 million cycles, with low power consumption requiring only 25 milliseconds of pulse width operation. It features a high waterproof rating of up to IP67. with self-cleaning functionality and strong impurity resistance capabilities. The electromagnetic valve is easy to install and can accommodate various structural configurations, allowing for adjustments in inlet and outlet lengths as per requirements. The valve can be constructed from special materials resistant to corrosion, making it suitable for use in seawater, high concentrations of acids and alkalis, as well as oily water environments.

Performance test



The strength test Static pressure 1.6MPa Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage 3.6V,Pulse width 30ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa. voltace DC4.5V. pulse width 30ms. the solenoid valve can be started and closed normaly
Low water pressure startup and closing At water pressure 0.02Mpa, voltage DC4.5V, pulse width 30ms, the solenoid valve can be started and closed normally
Leakage upon high water pressure 1.2Mpa zeroleakage
Leakage upon low water pressure 0.02Mpaleakage ≤0.1mL/min
Electric strength Amona the conductive part. mounting hole and nonconductive metal. it can withstand 500V/50Hz.
leakage current 0.75mA for 1min without the breakdown
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V >20MQ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2MPa
Low pressure 0.02MPa
Hot water High pressure 0.8MPa
Low pressure 0.02MPa
