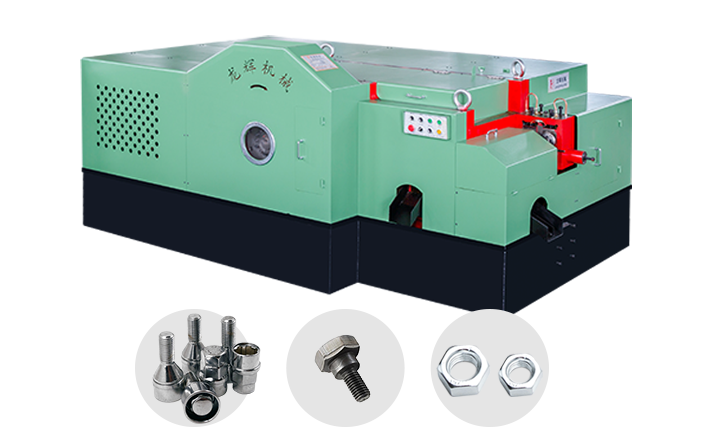

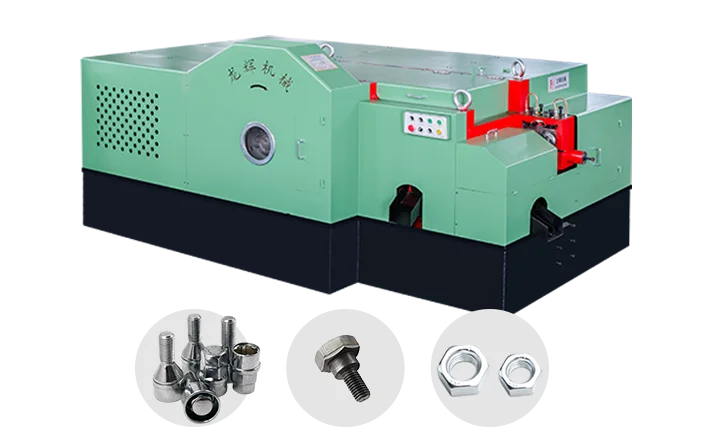

Multi-station automatic cold heading machine is a high-efficiency and automatic professional machine tool in forging machinery. It is an important basic equipment for the standard parts industry to produce various bolts, screws, rivets, nuts, sleeves, bearing rollers, and other special-shaped hardware parts. The cold pier process it uses is a pressure processing process with little and no cutting, which directly cold-extrudes the wire. The advancement of cold heading equipment itself and the superiority of cold heading technology also make it widely used in various fields of national economy: aerospace, ships, machinery, rail transit, automobiles, motorcycles, bicycles, construction, furniture and light industry, Processing and production of fasteners and special-shaped non-standard parts in daily necessities and other industries.



MODEL LH08B LH11B LH14B LH17B  LH19B LH24B LH27B LH30B LH33B LH36B LH41B
FORGING STATION 6S 6S 6S 6S 6S 6S 6S 6S 6S 6S 6S
CUTDFFDIA(MM) 8 11 14 17 19 24 27 30 32 36 38
CUTDFFLENGTH(MM) 20 30 30 35 40 40 40 45 50 50 55
KICK-OUT LENGTH(MM) 12 25 25 28 28 40 45 45 55 55 65
CENTER DISTANCE(MM) 38 50 60 70 80 100 115 120 140 150 165
PRODUCTSIZE(MM) 3#-1/8   M2.5-M5 4#-1/4     M4-M6 1/4-3/8    M6-M8 1/4-7/16    M8-M10 5/16-9/16  M10-M12 3/8-5/8   M12-M16 3/8-3/4   M12-M18 1/2-3/4   M12-M20 1/2-7/8  M12-M22 5/8-1     M16-M24 3/4-9/8  M20-M27
RAMSTROKE(MM) 40 70 80 100 100 130 140 140 200 200 240
PRODUCIONATE(POS) 120-300 100-250 90-200 80-160 70-140 50-100 50-100 50-90 50-90 45-85 40-80
FORGINGPOWER(TOM) 30 55 85 120 130 220 300 320 350 400 450
MAINMOTOR(KW) 7.5 11 15 22 37 45 55 75 110 132 185
APPROX.WT(TON) 2 4.5 8.5 10.5 16 28 30 35 50 55 80
MACHINDIMENSIONS(M) (L) 1.9 2.6 3.1 3.6 4.3 4.9 5 5.3 6.5 6.8 7.2
(W) 1.3 1.6 2 2.1 2.5 2.8 2.9 2.7 3.2 3.5 3.8
(H) 1 1.2 1.5 1.6 1.8 2 2.1 2.2 2.6 3 3.2
Note: The company conducts research and improvement work at any time, so it reserves the right to change the design, specification size and mechanical structure at any time. This data is for reference only. (The whole series of machines are equipped with frequency converters, and male mold mechanisms can be added according to customer needs)
