Importance of Protective Features

High Voltage Capacitor Unit is a key component in power electronics, energy storage, and industrial systems. Due to high operating voltages and currents, these units are susceptible to overvoltage, overcurrent, and overtemperature conditions that can lead to failure, reduced lifespan, or safety hazards. Ensuring that a High Voltage Capacitor Unit includes protective mechanisms is essential for maintaining reliable operation and minimizing risk.

Overvoltage Protection

Overvoltage conditions can occur due to transient spikes, switching events, or grid fluctuations. High Voltage Capacitor Unit with overvoltage protection uses design features such as voltage clamping, surge suppressors, or dielectric reinforcement to prevent breakdown of insulation and internal damage. These protective measures ensure that the capacitor continues to operate safely even under sudden voltage fluctuations.

Overcurrent Protection

Excessive current can generate high thermal stress and lead to overheating or mechanical damage in a High Voltage Capacitor Unit. Overcurrent protection may include fuses, current-limiting circuits, or thermal cutoffs to interrupt excessive current flow. By limiting peak currents, the capacitor unit avoids internal damage, maintains electrical integrity, and prolongs its operational lifespan.

Overtemperature Protection

High temperatures degrade dielectric materials and can compromise the performance of a High Voltage Capacitor Unit. Thermal protection mechanisms, such as temperature sensors, thermal cutoffs, or forced cooling systems, prevent the unit from exceeding safe operating temperatures. Maintaining thermal stability ensures reliable capacitance, reduces the risk of failure, and enhances overall system safety.

Integration of Protective Features

High Voltage Capacitor Unit often integrates overvoltage, overcurrent, and overtemperature protections into a single design for comprehensive safety. Protective circuits, high-quality materials, and robust housings work together to maintain performance under electrical and thermal stress. Properly engineered protection ensures continuous, reliable operation even in demanding industrial environments.

Operational and Maintenance Considerations

Regular inspection and monitoring of voltage, current, and temperature are critical to maintaining the effectiveness of protective features. Installation in accordance with manufacturer guidelines and avoiding conditions that exceed rated specifications further enhances the reliability of a High Voltage Capacitor Unit. Proactive maintenance ensures safe, long-term operation while minimizing the risk of unexpected failures.

Ensuring Safe and Reliable Capacitor Operation

High Voltage Capacitor Unit equipped with overvoltage, overcurrent, and overtemperature protection provides essential safety and operational reliability. By incorporating protective mechanisms, manufacturers mitigate risks associated with electrical and thermal stress, extend the lifespan of the capacitor, and ensure stable performance in industrial and power electronic applications. Selecting units with robust protection is key to maintaining safe and efficient system operation.

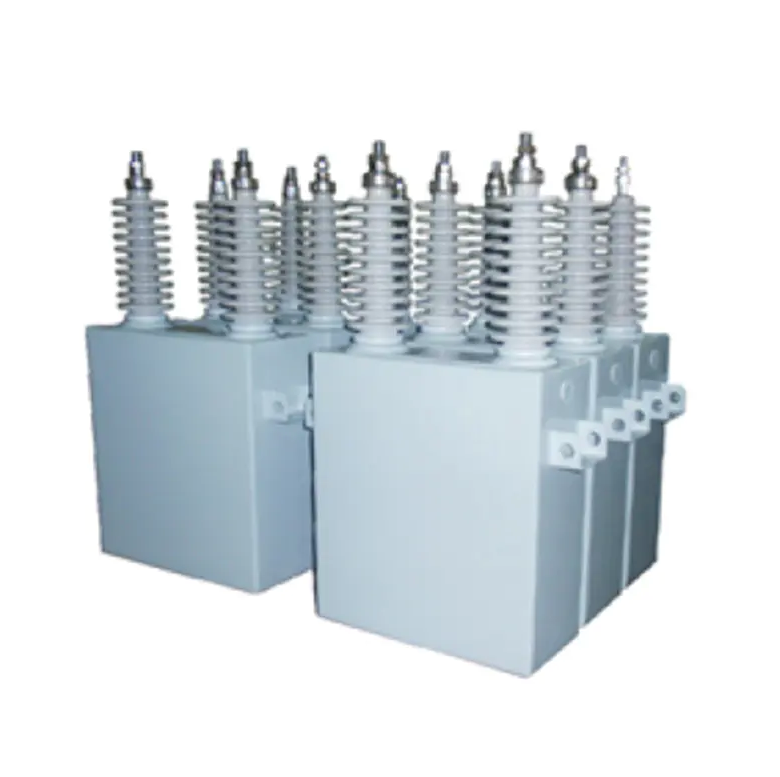

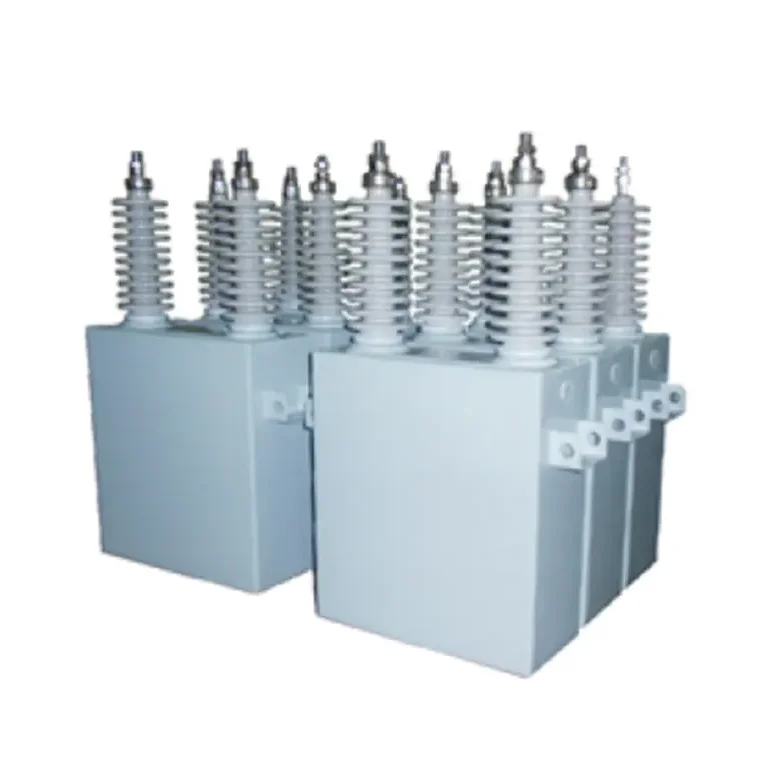

Used in three-phase AC power systems with a frequency of 50Hz and voltage levels ranging from 6kV to 66kV. Its primary purpose is to provide capacitive reactive power compensation, thereby improving power factor, enhancing grid voltage quality, and reducing line losses. The product offers advantages such as easy installation, safe operation, and a small footprint, making it particularly suitable for installation in compact spaces.
