How VNMG Tool Holders Enhance Accuracy and Efficiency in CNC Turning
High-performance CNC turning demands accuracy, consistency, and reliability at every stage of the machining process. From material selection to cutting parameters, each element plays a role in achieving superior results. One often underestimated component is the tool holder, which directly affects cutting stability and insert performance. Among various turning solutions, the vnmg tool holder has become a critical choice for manufacturers focused on productivity and precision.
Designed to support VNMG inserts, these tool holders are widely used in demanding industrial environments. Their robust design and optimized geometry make them suitable for handling heavy cutting loads while maintaining dimensional accuracy.
Understanding the Role of Tool Holders in CNC Turning
In CNC turning operations, the tool holder acts as the link between the cutting insert and the machine. A poorly designed holder can lead to vibration, uneven wear, and compromised surface quality. On the other hand, a well-engineered holder ensures that the insert remains firmly positioned during cutting.
A vnmg tool holder is specifically designed to support negative rake VNMG inserts, which are known for their strength and durability. This combination allows machinists to perform stable cutting operations even under high feed rates and cutting depths.
Why VNMG Inserts Require Specialized Holders
VNMG inserts feature a diamond-shaped geometry and negative rake angles. While this design offers excellent strength, it also requires precise clamping and support. This is where a dedicated vnmg insert holder becomes essential.
The holder ensures:
-
Accurate insert positioning
-
Uniform load distribution
-
Reduced insert movement during cutting
-
Improved edge utilization
Without a compatible holder, even high-quality inserts may fail prematurely or deliver inconsistent results.
Importance of VNMG Tool Holder Angles
One of the key factors that influence machining performance is tool holder geometry. The vnmg tool holder angle determines how the cutting edge engages with the workpiece and how cutting forces are transferred to the machine.
Correct angle selection helps:
-
Control chip flow
-
Reduce cutting resistance
-
Improve surface finish
-
Extend insert life
In high-performance turning, improper angles can cause excessive vibration and heat buildup, leading to tool failure.

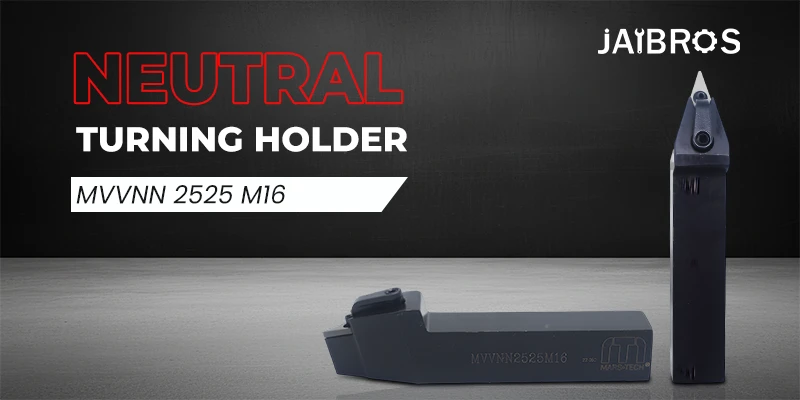

VNMG Neutral Tool Holder Angle for Balanced Machining
The vnmg neutral tool holder angle is widely preferred in general-purpose CNC turning. Neutral holders provide balanced cutting forces, making them suitable for a wide range of materials and cutting conditions.
Advantages of neutral angles include:
-
Stable cutting action
-
Reduced stress on machine spindle
-
Consistent performance in continuous cuts
-
Versatility for different operations
A vnmg neutral tool holder is especially useful in workshops handling varied production requirements, as it reduces the need for multiple specialized holders.
Stability and Rigidity in High-Performance Turning
High-performance CNC turning often involves high speeds, deep cuts, and hard materials. Under such conditions, rigidity becomes critical. A vnmg tool holder is engineered with a strong shank and secure clamping mechanism to minimize vibration.
Improved rigidity results in:
-
Better dimensional accuracy
-
Reduced chatter
-
Longer insert life
-
Improved repeatability
These benefits make VNMG holders suitable for both roughing and semi-finishing operations in demanding applications.
Material Versatility and Industrial Applications
VNMG tool holders are widely used across industries such as automotive, aerospace, heavy engineering, and general manufacturing. Their ability to handle different materials makes them a versatile choice.
Commonly machined materials include:
-
Carbon steel
-
Alloy steel
-
Stainless steel
-
Cast iron
A properly selected vnmg tool holder allows machinists to maintain stable cutting conditions even when working with difficult-to-machine materials.
Productivity and Cost Efficiency Benefits
In high-volume production environments, tooling efficiency directly impacts operational costs. VNMG tool holders help improve productivity by enabling higher cutting parameters without sacrificing quality.
Key cost-saving advantages include:
-
Reduced insert breakage
-
Longer tool life
-
Fewer machine stoppages
-
Lower tooling replacement costs
By ensuring consistent insert performance, manufacturers can achieve better output with less downtime.
Selecting the Right VNMG Tool Holder for CNC Turning
Choosing the correct holder is crucial for achieving high-performance results. Several factors should be evaluated before selection.
1. Machining Application
Determine whether the operation involves roughing, profiling, or semi-finishing.
2. Insert Compatibility
Ensure the holder matches the VNMG insert size and thickness.
3. Tool Holder Angle
Select the appropriate vnmg tool holder angle based on cutting requirements and material type.
4. Machine Capacity
Match the holder shank size with the CNC lathe’s turret or tool post.
A well-matched vnmg tool holder enhances machining stability and ensures optimal performance.
Maintenance Practices for Long-Term Performance
Even the best tooling systems require proper maintenance. Regular inspection and care help maintain accuracy and extend holder life.
Recommended practices include:
-
Cleaning insert pockets after use
-
Inspecting clamping screws regularly
-
Replacing worn components promptly
-
Storing holders in protective cases
Consistent maintenance ensures that VNMG holders continue to perform reliably in high-demand environments.
Future Demand for VNMG Tool Holders
As CNC machining advances, manufacturers continue to seek tooling solutions that offer durability and versatility. The demand for systems like the vnmg tool holder is expected to grow due to increasing automation and precision requirements.
With ongoing improvements in holder materials and design, VNMG tool holders will remain a key component in high-performance CNC turning setups.
Conclusion
High-performance CNC turning relies on more than just advanced machines and quality inserts—it depends heavily on the right tooling setup. VNMG tool holders play a crucial role by providing the rigidity, stability, and precise insert positioning required for demanding turning operations. Their ability to handle high cutting forces, support neutral cutting angles, and deliver consistent results makes them an essential choice for manufacturers focused on efficiency and accuracy. For manufacturers seeking reliable and precision-engineered turning solutions, Jaibros offers a comprehensive range of high-quality tool holders and machining accessories. Known for durability and performance, Jaibros supports modern CNC operations with tooling solutions designed to meet the needs of high-performance and industrial-scale machining.
FAQs
1. What makes VNMG tool holders suitable for high-performance CNC turning?
Their rigid design and compatibility with negative rake inserts allow them to handle high cutting forces effectively.
2. What is a vnmg neutral tool holder angle?
It is a balanced angle that distributes cutting forces evenly, improving stability and versatility.
3. How does vnmg tool holder angle affect machining quality?
The angle influences chip control, cutting force direction, surface finish, and insert life.
4. Can VNMG tool holders be used for both roughing and finishing?
They are mainly used for roughing and semi-finishing, depending on insert grade and cutting parameters.
5. Why is a dedicated vnmg insert holder important?
It ensures proper insert seating, stability, and consistent cutting performance.
