Importance of Overcurrent Protection

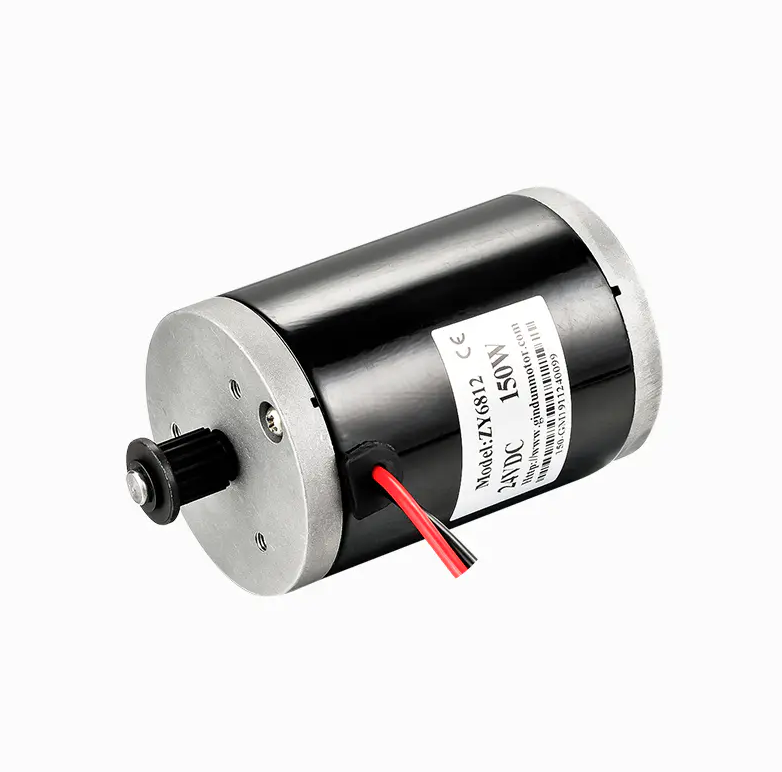

A Permanent Magnet DC Motor is widely used for its efficiency, compact size, and precise speed control. However, like all electrical machines, it is susceptible to overcurrent and overload conditions. These situations can cause excessive heating, damage to windings, or permanent failure of the motor. Implementing proper protection strategies is essential to maintain performance and extend the motor’s operational lifespan. Understanding the factors that lead to overcurrent is the first step in preventing these issues.

Causes of Overcurrent and Overload

Overcurrent in a Permanent Magnet DC Motor typically occurs when the load exceeds the motor’s rated capacity or when the supply voltage fluctuates. Mechanical factors such as sudden torque spikes, stalling, or abrupt load changes can also induce excessive current. Electrical faults, including short circuits or incorrect wiring, further increase the risk. Repeated exposure to these conditions can compromise insulation, weaken the magnets, and accelerate wear on bearings, leading to decreased reliability.

Electrical Protection Techniques

Several electrical methods can prevent overcurrent. Fuses and circuit breakers provide basic protection by disconnecting the power supply if the current exceeds a safe threshold. Advanced solutions include electronic current limiters and motor controllers that monitor real-time current and automatically adjust voltage or duty cycle. Using properly rated protective devices ensures that the motor operates within its design limits, safeguarding both the motor and connected equipment.

Mechanical and Operational Measures

Mechanical strategies also play a key role in avoiding overload. Ensuring that the motor is not subjected to loads beyond its rated torque is crucial. Employing soft-start mechanisms, such as ramped voltage or current control, can prevent sudden inrush currents. Proper selection of gear ratios, coupling devices, and load distribution minimizes stress on the motor. Routine maintenance, including lubrication of bearings and inspection of rotating parts, further reduces the likelihood of mechanical overload.

Monitoring and Control Systems

Modern Permanent Magnet DC Motor systems often integrate monitoring solutions that provide continuous feedback on current, temperature, and torque. Controllers can respond immediately to anomalies, reducing current before damage occurs. Predictive maintenance tools can also detect early signs of stress, enabling timely intervention. Combining real-time monitoring with automated control systems significantly enhances operational safety and reliability.

Reliable Motor Operation Through Prevention

Avoiding overcurrent and overload conditions in a Permanent Magnet DC Motor requires a combination of electrical, mechanical, and monitoring strategies. Proper protective devices, careful load management, and advanced control systems ensure that the motor functions safely within its rated specifications. By adopting these measures, operators can maintain high performance, prevent damage, and extend the motor’s lifespan, even in demanding applications.
