The Ice Cream Mixing System including Batch type and HTST type. The batch type is suitable machine for pasteurizing small and medium ice-cream productions, while the HTST type is ideal equipment for medium and large scale ice cream production. Ice cream materials are prepared via different stages including: mixing and dissolving different ingredients, pasteurization, homogenization and cooling, then transferred into aging tanks.
They're special ice cream sterilizing equipment with futures: compact structure, small space, high heat recovery, good efficiency of energy saving, consumption reduction, as well as simple operation from control panel.

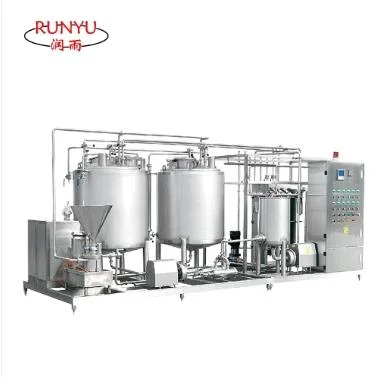

1. The HTST system's main components are:

-- Stainless steel base with adjustable feet;

-- Heating system with either electric/gas or steam boilers;

-- Two mixing tanks for prepare and heating ice cream material;

-- Duplex tube filter;

-- Balance holding tank;

-- Homogenizer;

-- Plate heat exchanger in 5 sections;

-- Control panel for whole set machine;

-- Sanitary pipelines for connecting each unit above.

Capacity:

500 liter/hour ,1000 liter/hour ,2000 liter/hour ,3000 liter/hour,5000 liter/hour,10000 liter/hour
