To handle complex dispensing paths (such as 3D curved surfaces, irregular contours, multiple corners and micro-gaps). The key lies in multi-axis coordination + high-precision motion control + 3D vision /CCD vision guidance + intelligent path planning + precision control of speed and adhesive volume. By integrating hardware, software, and process technology, the machine can achieve precise alignment and uniform dispensing.

 As early as 2007, Second Intelligent independently developed the first irregular-shaped dispensing machine in the Chinese market. With over 20 years of experience, the company has established a mature product chain and solution system for handling products with complex path requirements.

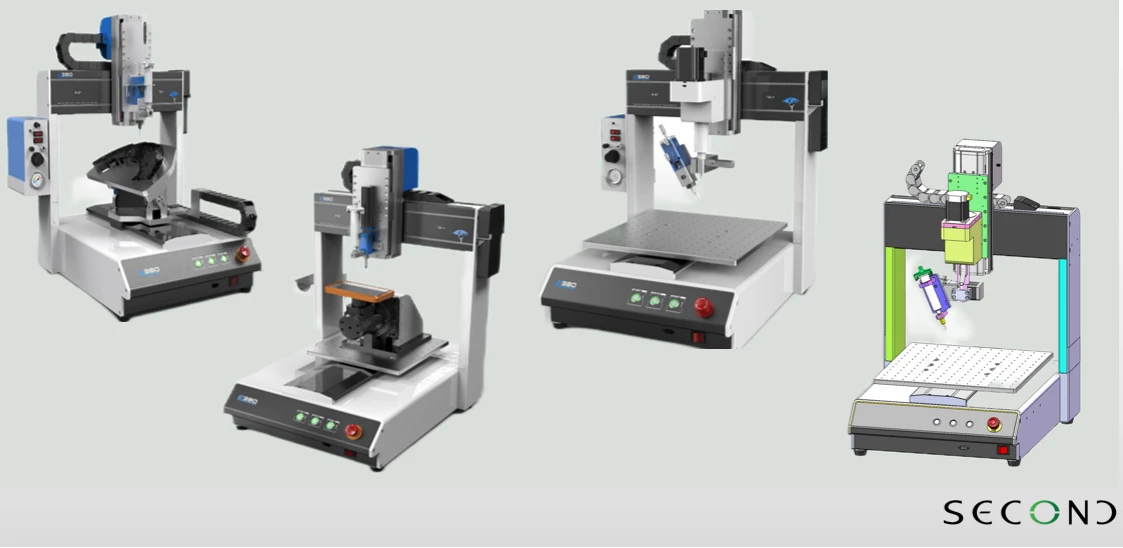

Second Intelligent dispensing machines

1.Multi-axis linkage platform

Multi-axis platform: Standard configurations include three-axis, four-axis, and five-axis platform. Such as the SEC-SE480-2R five-axis model , It supports XYZ axes plus a rotation axis ( R) and a tilt axis (W) to enable adjustment to any spatial orientation, making them suitable for complex workpiece products such as those with curved surfaces, irregular shapes, and inclined surfaces.



3.CCD & 3D Vision Guidance

CCD & 3D vision system:

Set visual programming, visual positioning, visual detection in one, matching different lenses and light sources, it can achieve Mark point positioning, positioning capture and other functions, combined with MES system, can upload and save the results.

It automatically identifies and locates product mark points. The vision system analyzes dispensing trajectory errors; if the errors exceed a certain threshold, an alarm is triggered and the system corrects the dispensing path to meet product tolerance requirements. The system also monitors the position, width, and continuity of the adhesive bead in real time to identify

defects such as excess or insufficient adhesive, breaks, and misalignment.
